Mission Analysis and Plotting Capabilities

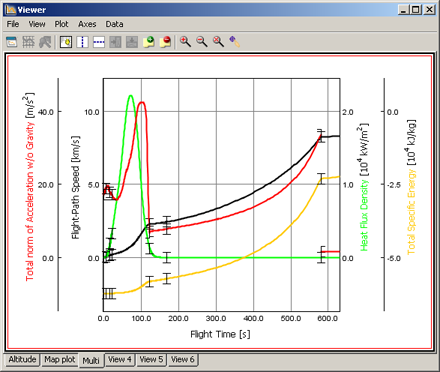

Multiple 2D plot

The user has the capability to plot in one panel up to four functions with different units.

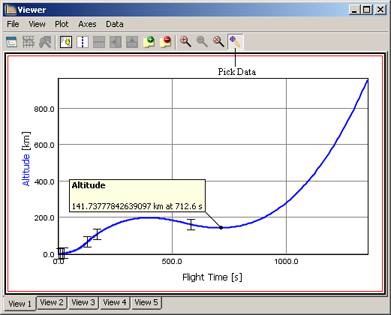

Data Extraction

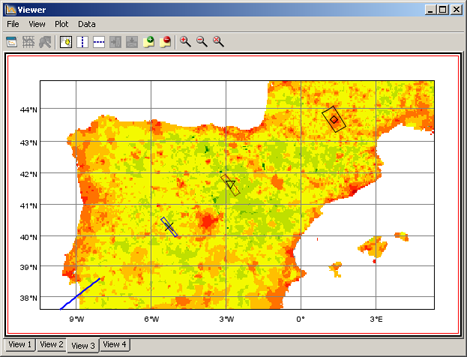

Map Plot

The ground track can be plotted over several maps (Earth, Mars, Moon, Earth Population, etc.). Additional information can be added to the plot (e.g. mach=1, impact position et.al.)

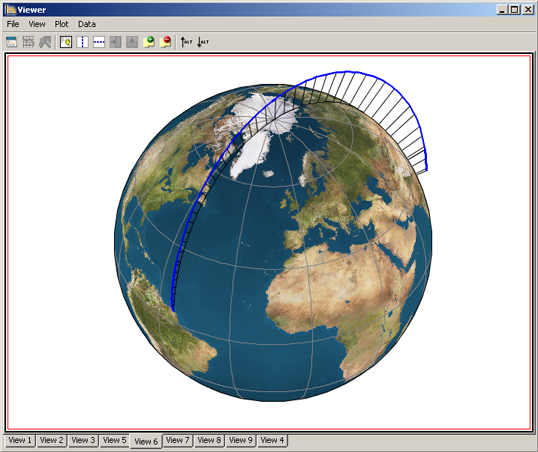

Satellite View

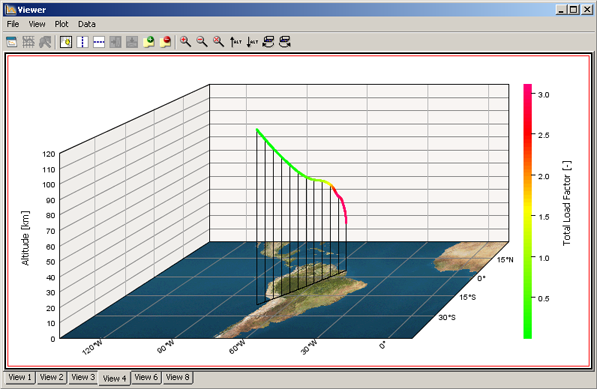

3D Map Plot

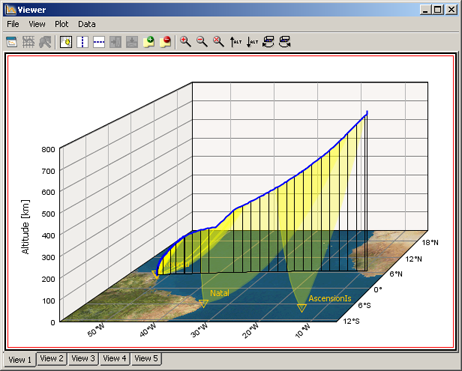

Station Coverage

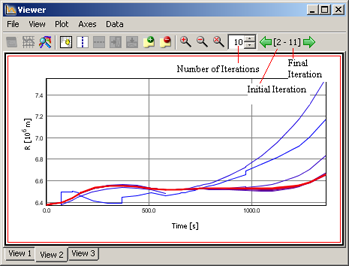

Optimization History

The user can follow the optimization improvements "on the fly"

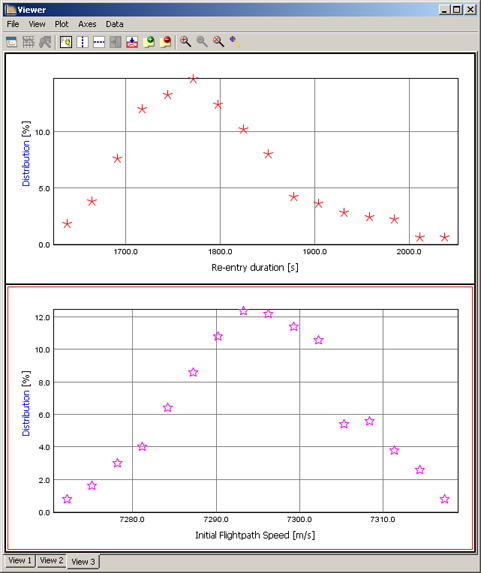

Batch Mode Postprocessing: Distribution

Montecarlo analysis becomes a completely automatized procedure.
